Amine NH2 functionalized multiwall carbon nanotubes & amine functionalized SWNT

Amine (NH₂) Functionalized Carbon Nanotubes

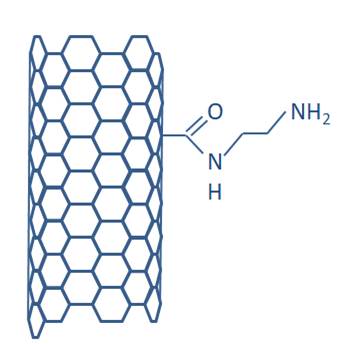

Amide (NH₂) functionalized carbon nanotubes are a derivative of our COOH functionalized carbon nanotubes. We react the carboxyl COOH group on the CNT with ethylene diamine (H₂N-CH₂-CH₂-NH₂) using a coupling agent. This results in a nanotube with an amide linkage and a primary amine group at the end of the carbon chain. We conduct this same reaction to produce NH2-MWNT and NH2-SWNT. CNT-C(=O)-NH-CH₂-CH₂-NH₂ Coupling is confirmed by FTIR. Amine functionalized nanotubes carry a positive charge, and can be suspended in a number of solvents by special request. We can also create thiol functionalized nanotubes using a similar route.

Images below are FTIR, Raman Potential Data of our COOH functionalized multiwall nanotubes (PD15L5-20-COOH). Click on the images to view in PDF. More analytical data can be requested via email.

Click on a cell in Size, Price column to order online or for more information
Shipping charges are prepaid and added to an invoice.
Applicable duties and taxes are paid separately upon customs clearance.
Multiwall Nanotube MSDS

FTIR Spectrum of NH2 Functionalized MWCNT

Raman Spectrum of NH2 Functionalized MWCNT

Catalog No.	Description	Size, Price	Catalog No.	Description	Size, Price
Amine NH₂ Functionalized Hollow Structure Multiwall Carbon Nanotubes, purity >95% by TGA
PD15L1-5-NH₂	OD: 15 ± 5 nm, Length:1-5 μm	1g, $300	PD15L5-20-NH₂	OD:15 ± 5 nm Length:5-20 μm	1g, $300
PD15L1-5-NH₂	OD: 15 ± 5 nm, Length:1-5 μm	5g, $1,350	PD15L5-20-NH₂	OD:15 ± 5 nm Length:5-20 μm	5g, $1,350
PD30L1-5-NH₂	OD: 30 ± 15 nm, Length:1-5 μm	1g, $300	PD30L5-20-NH₂	OD: 30 ± 15 nm, Length:5-20 μm	1g, $300
PD30L1-5-NH₂	OD: 30 ± 15 nm, Length:1-5 μm	5g, $1,350	PD30L5-20-NH₂	OD: 30 ± 15 nm, Length:5-20 μm	5g, $1,350
NH₂ Functionalized Bamboo Structure Multiwall Carbon Nanotubes, purity >95% by TGA
BPD30L1-5-NH₂	OD: 30 ± 10 nm Length: 1-5 μm	1g, $300	BPD30L5-20-NH₂	OD: 30 ± 10 nm Length: 5-20 μm	1g, $300
BPD30L1-5-NH₂	OD: 30 ± 10 nm Length: 1-5 μm	5g, $1,350	BPD30L5-20-NH₂	OD: 30 ± 10 nm Length: 5-20 μm	5g, $1,350
NH₂ Functionalized Double Wall Carbon Nanotubes, purity >95% by TGA
D4L1-5-NH₂	OD: 4 ± 1 nm Length: 1-5 μm	1g, Backordered	D4L5-20-NH₂	OD: 4 ± 1 nm Length: 5-20 μm	1g, Backordered
D4L1-5-NH₂	OD: 4 ± 1 nm Length: 1-5 μm	5g, Backordered	D4L5-20-NH₂	OD: 4 ± 1 nm Length: 5-20 μm	5g, Backordered
NH₂ Functionalized Single Wall Carbon Nanotubes, purity >95% by TGA
D1.5L1-5-NH₂	OD: ~1.5 nm Length: 1-5 μm	1g, Backordered
D1.5L1-5-NH₂	OD: ~1.5 nm Length: 1-5 μm	5g, Backordered
