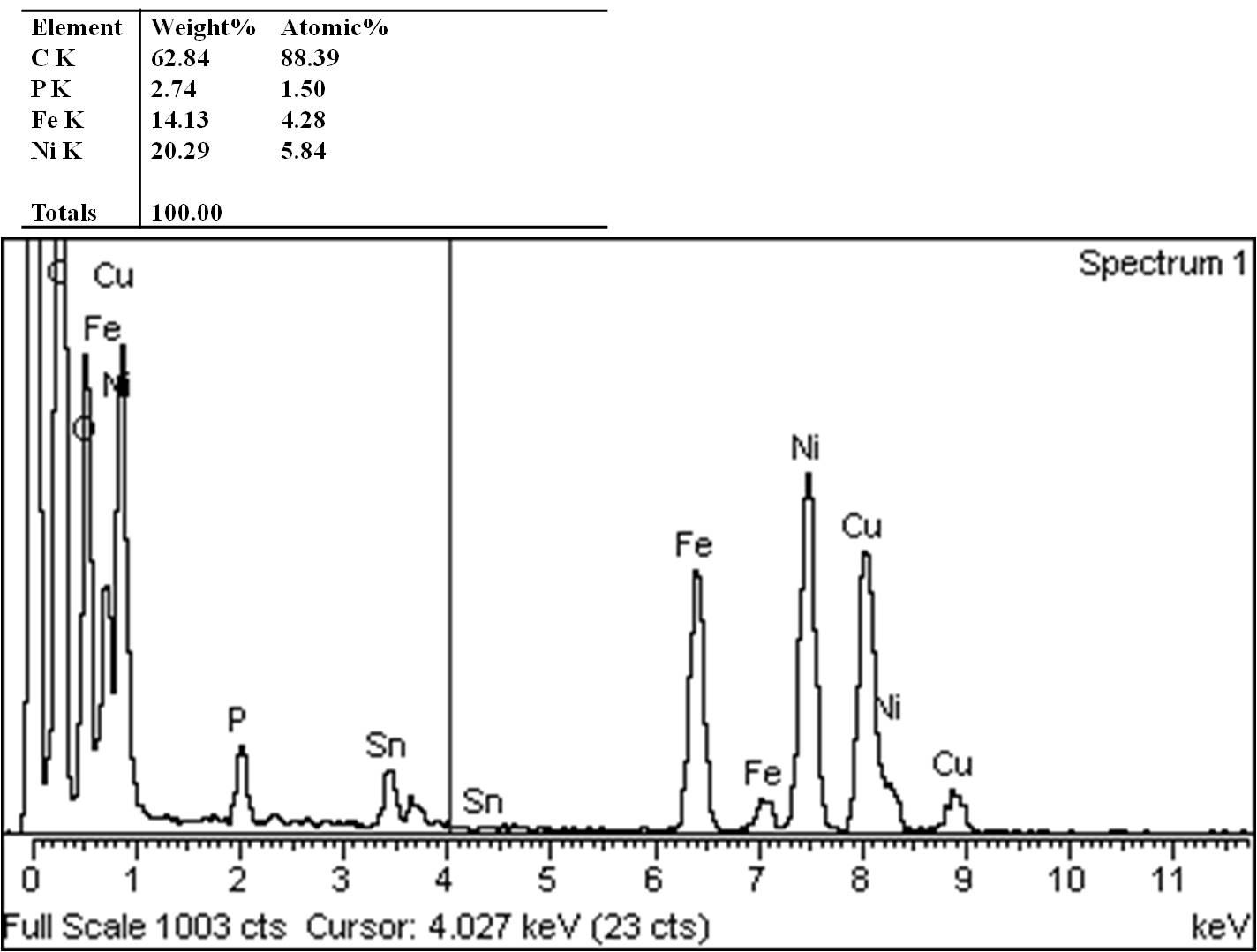

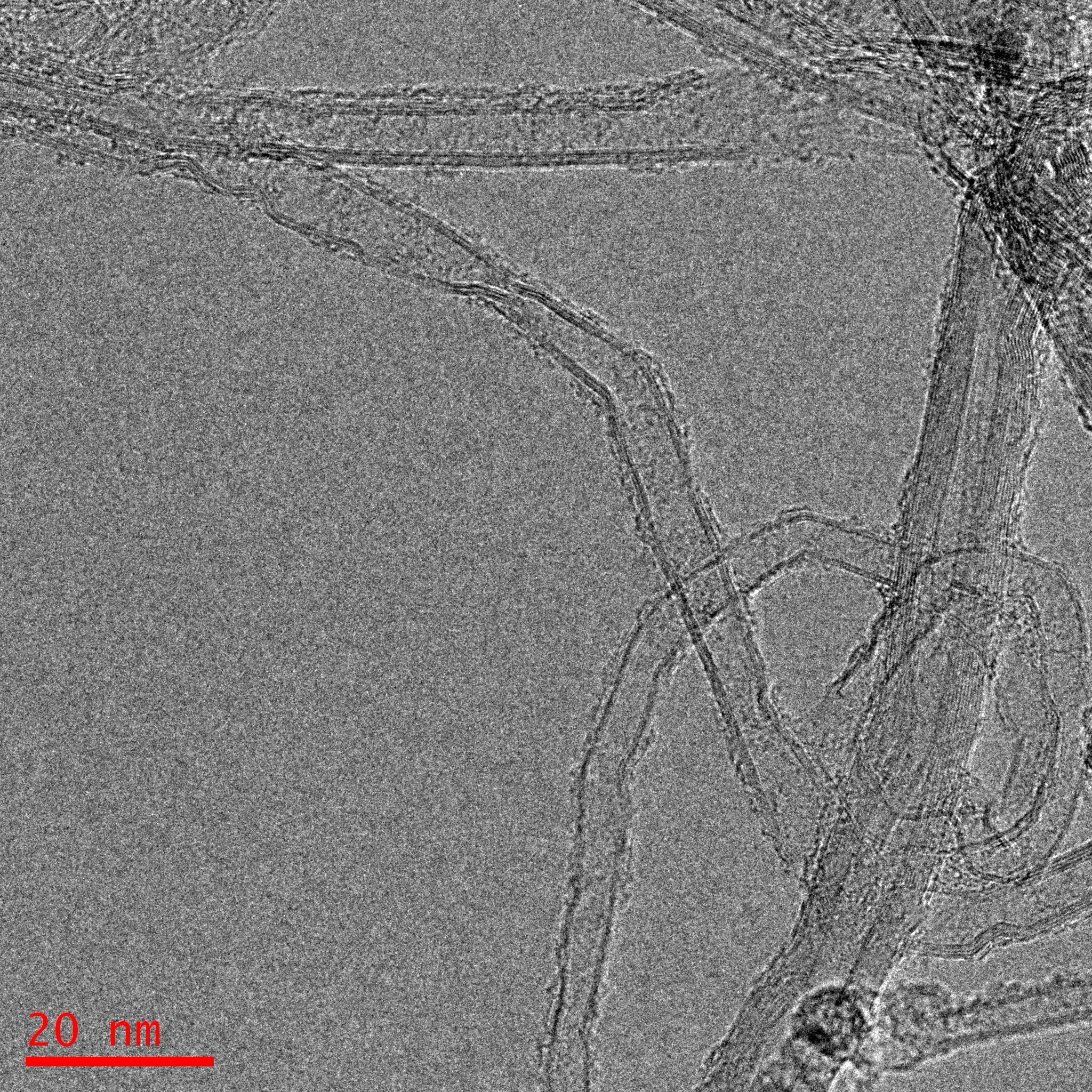

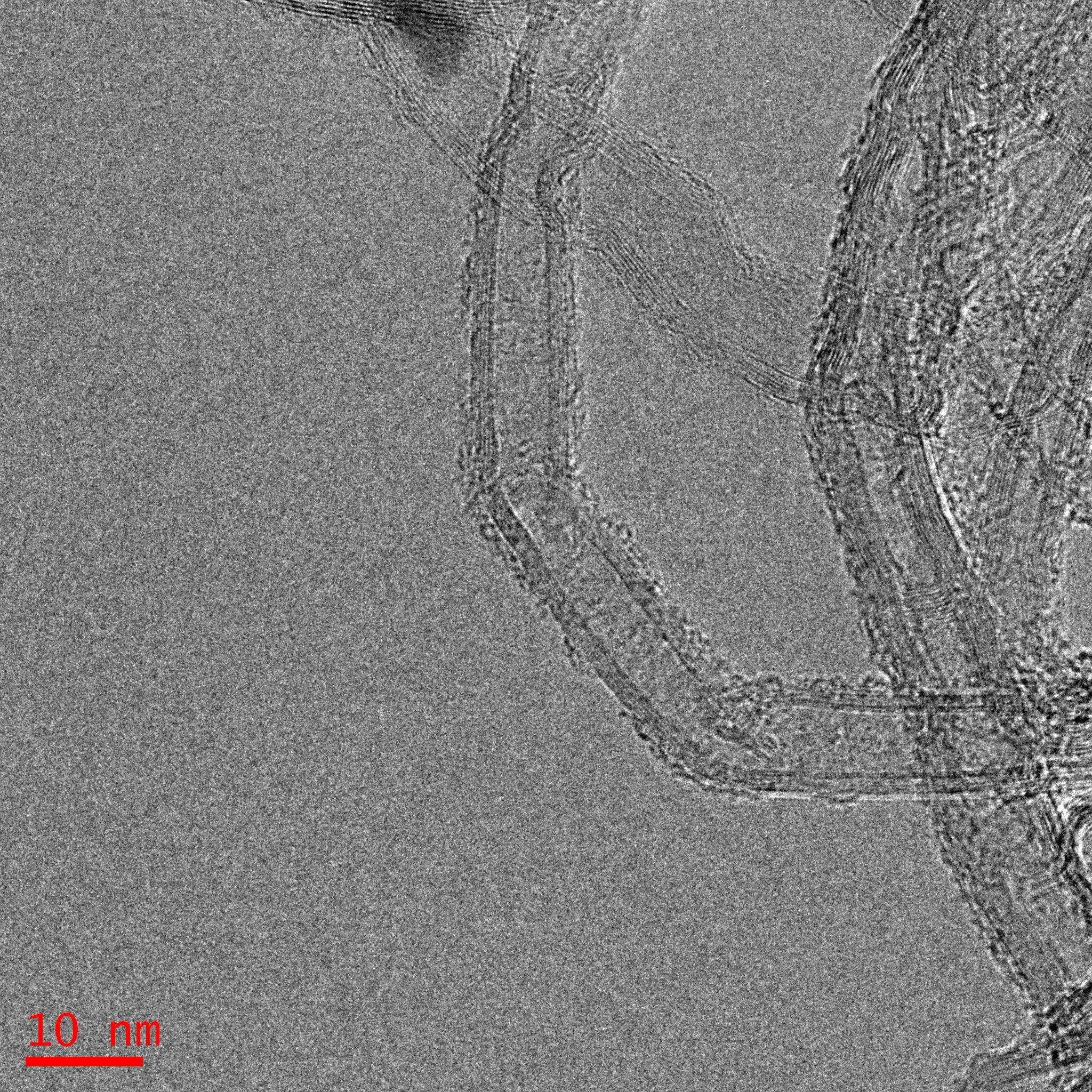

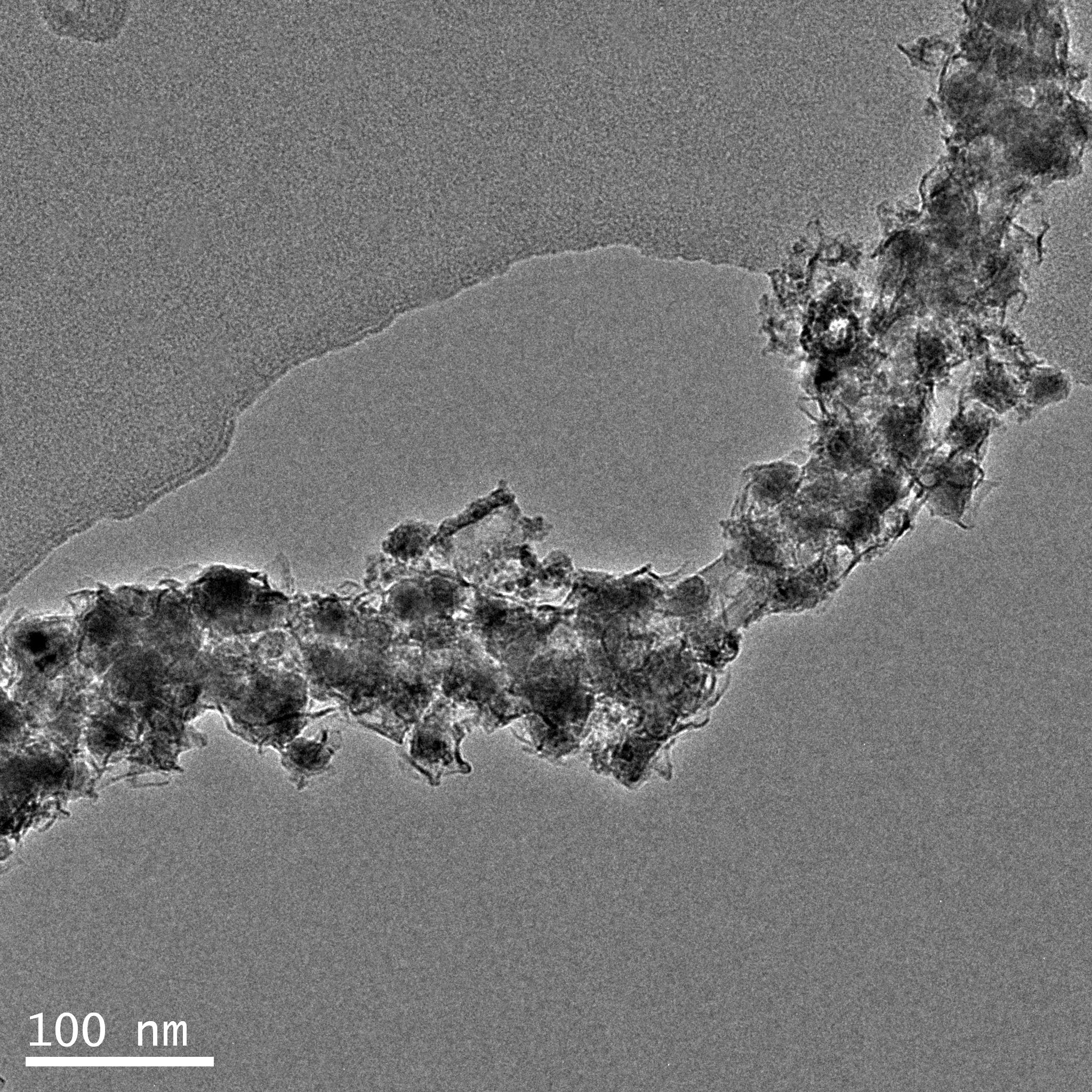

Metal and Silica Coated Carbon Nanotubes Our research grade multiwall nanotubes can be coated with a variety of metals and alloys using an electroless deposition process. This process results in thin (1-10 nm) coatings. We currently sell CNTs coated with silver, copper, silica, and Ni-Fe alloy. We will gladly discuss other coating options with you. For custom orders please contact:info@nano-lab.com.                   (Bottom Left) TEM image of Ni-Fe Coated PD15L520. (Bottom Right) EDS spectrum of Ni-Fe coating. Click on the images to enlarge. (Top Left) TEM image of Silver Coated PD30L15. (Top Right) TEM image of Copper coated PD30L15. Click on the images to enlarge. Catalog No. Description Size Price Catalog No. Description Size Price Copper coated Carbon Nanotubes PD15L1-5-Cu OD: 15 ± 5 nm, Length:1-5 μm 1g $210 PD15L5-20-Cu OD:15 ± 5 nm Length:5-20 μm 1g $200 5g $1000 5g $950 PD30L1-5-Cu OD:30 ± 15 nm, Length:1-5 μm 1g $210 PD30L5-20-Cu OD:30 ± 15 nm Length:5-20 μm 1g $200 5g $1000 5g $950 Silver Coated Carbon Nanotubes PD15L1-5-Ag OD: 15 ± 5 nm, Length:1-5 μm 1g $210 PD15L5-20-Ag OD:15 ± 5 nm Length:5-20 μm 1g $200 5g $1000 5g $950 PD30L1-5-Ag OD:30 ± 15 nm, Length:1-5 μm 1g $210 PD30L5-20-Ag OD:30 ± 15 nm Length:5-20 μm 1g $200 5g $1000 5g $950 Nickel-Iron Alloy Coated Nanotubes PD15L1-5-NiFe OD: 15 ± 5 nm, Length:1-5 μm 1g $210 PD15L5-20-NiFe OD:15 ± 5 nm Length:5-20 μm 1g $200 5g $1000 5g $950 PD30L1-5-NiFe OD:30 ± 15 nm, Length:1-5 μm 1g $210 PD30L5-20-NiFe OD:30 ± 15 nm Length:5-20 μm 1g $200 5g $1000 5g $950 Silica Coated Nanotubes PD15L1-5-SiO2 OD: 15 ± 5 nm, Length:1-5 μm 1g $190 PD15L5-20-SiO2 OD:15 ± 5 nm Length:5-20 μm 1g $170 5g $900 5g $950 PD30L1-5-SiO2 OD:30 ± 15 nm, Length:1-5 μm 1g $190 PD30L5-20-SiO2 OD:30 ± 15 nm Length:5-20 μm 1g $170 5g $900 5g $800
